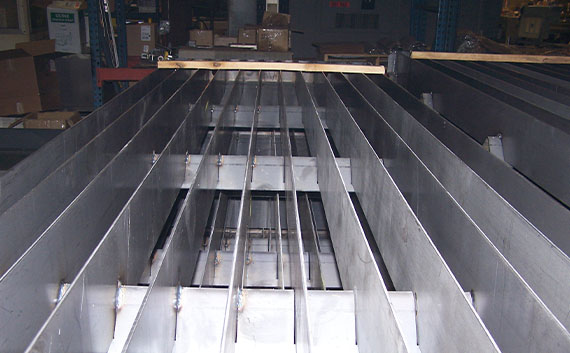

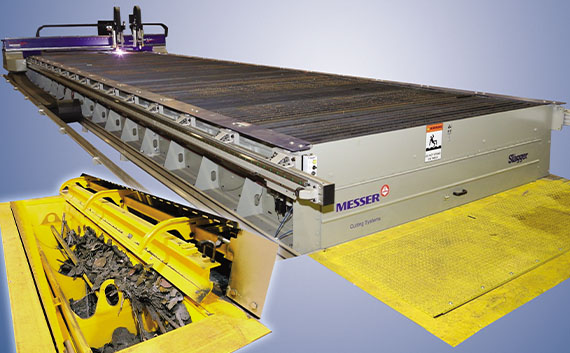

The Slagger
Pushes slag from the table in minutes
The Slagger cutting table is like no other in its ability to move the slag. Whether produced from oxyfuel or plasma cutting, it collects slag from the table bottom to a collection bucket at the end of the table in minutes. The Slagger® table can handle material up to four inches thick. Larger plate upon request.
- Table is cleaned once a day in five minutes, depending on table length
- Small parts can be retrieved easily.
- The dust collector keeps the operating environment clean.
- Table does not have to be disassembled to remove the slag
- Table Sizes Available: Widths from 6' to 24', (1.8288 m to 7.3152 m) Lengths from 10' to 200', (3.048 m to 60.96 m).
- Cutting Tools Accommodated: All dry plasma systems, oxy-fuel up to 20 torches.
- Material Thickness Capacity: Light gauge to four inch plate standard, other thicknesses available upon request
For More information please click below link
https://in.messer-cutting.com/products/machines/components/cutting-table/slagger

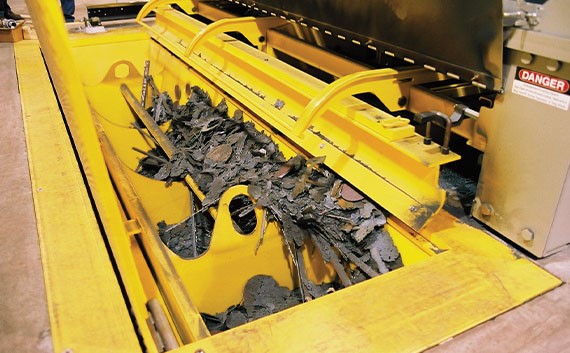

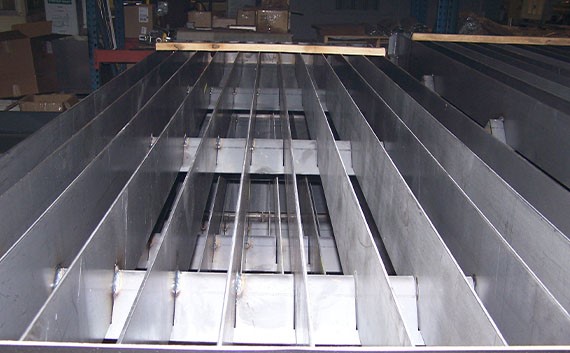

The Slagger Plus
Designed to work with smaller machines.
The Slagger® PLUS cutting table is like no other cutting table anywhere. The Slagger® PLUS is specially designed to work with smaller machines, such as the Messer Cutting Systems MetalMaster Evoution, and with machines using plasma systems up to 400 amp and material up to 3" (76.2 mm).
- Small parts can be retrieved easily.
- The dust collector keeps the operating environment clean.
- Table does not have to be disassembled to remove the slag
- Table Sizes available: Width 6' 8' and 10' (1.8 m, 2.4 m, 3 m) Length: 5'-50' (1.5 m-15.2 m).
- Material Type: Mild Steel, Stainless Steel, and Aluminum.
- Machine Model Compatibility: MetalMaster Evolution and other machines with 400 amp plasma or lower.
- Material Thickness Capacity: 26 gauge to 3" (76.2 mm).
For More information please click below link
https://in.messer-cutting.com/products/machines/components/cutting-table/slagger-plus

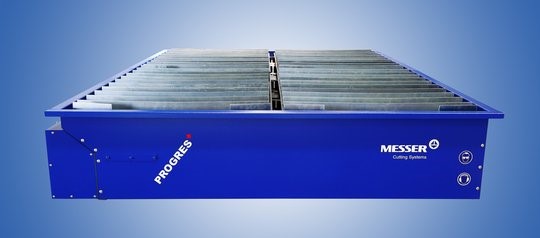

PROGRES+ CUTTING TABLE
Efficient, Effective, Robust Design for every Thermal cutting process
KEY FEATURES:
- Progres cutting tables create the prerequisites for ideal production conditions in the plasma, oxy-fuel and laser cutting processes.
- Our cutting tables are the ideal complement for your cutting machine. Equipped with an additional smoke extraction system, they protect the user from the harmful smoke and help to protect the environment.
- The equipment is especially engineered to filter air, remove solids and smoke fumes. The exhaust and filter equipment for cutting and welding operations provides suitable working conditions and clean environment.
- Modular construction of table simplifies transport and Installation. This also allows possibility of extending the cutting table in future.
For More information please click below link
https://in.messer-cutting.com/products/components/cutting-table/progres
